Spec:
feature

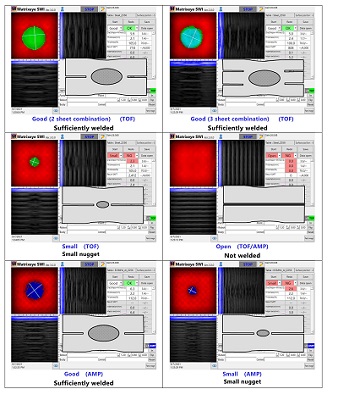

1.The 3D three-dimensional image of the spot welding point is presented, and the structural characteristics of each solder joint are clearly visible. Through non-destructive inspection 3D ultrasonic inspection technology, the accuracy of the inspection results is ensured.

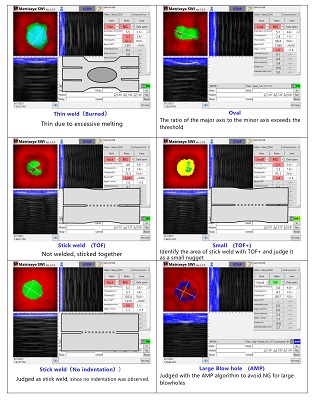

2.It can correctly detect the pores inside the solder joints, ensure that the welding quality is not affected, and improve product reliability. All this is due to the precision detection of non-destructive inspection 3D ultrasonic inspection.
3.A variety of spot welding diameters can be matched by one inspection probe, which is suitable for welding needs of different scales. Non-destructive inspection 3D ultrasonic inspection technology makes the inspection process more flexible.
4.Toshiba's unique technology makes the operation simple and easy to understand. Even non-professionals can easily get started and improve work efficiency through non-destructive 3D ultrasonic inspection.
5.Direct reading of solder joint diameter serves as an important basis for quality management and helps companies maintain high-standard production processes. This process relies on the accuracy of non-destructive inspection 3D ultrasonic inspection.
6.Unique ultrasonic technology, combined with ultrasonic non-destructive equipment, can detect false soldering of solder joints and avoid potential quality problems. This is the core advantage of non-destructive 3D ultrasonic inspection.
7.Three plates are overlapped and spot welded. Using ultrasonic non-destructive equipment, multiple solder joints can be inspected at one time, saving time and labor costs. Non-destructive inspection 3D ultrasonic inspection technology makes this possible.
Content:
software
Instant display of test results
Now the test results are updated instantly during the test process, allowing operators to keep track of the test status at any time and make it easier to understand when confirmation is needed, improving overall work efficiency.
Simple measurement mode
This mode allows you to measure the diameter of molten parts without entering plate thickness information, simplifying the operation process and especially suitable for rapid inspection needs.
Improved pressure detection capabilities
Equipped with a new algorithm for detecting pressure contact status, this mode allows you to accurately measure the actual nugget diameter to ensure that welding quality meets standards.
Improved operability
The screen configuration has changed significantly compared to the previous software, and the settings screen has been divided into categories to make it easier for users to find the functions they need.
Improved visibility
For example, the display and intuitive selection of specified files make the operation process smoother and the user experience greatly improved.
The operability is greatly improved, allowing non-professionals to adapt quickly, further promoting production efficiency.
External device linkage function
It is newly equipped with linkage functions with external PLC and PC, which can control Matrixeye from the outside to achieve more flexible operation and data management. It can also work with ultrasonic non-destructive equipment to improve the efficiency of the overall inspection system.
